Lil' Mar: Step #1

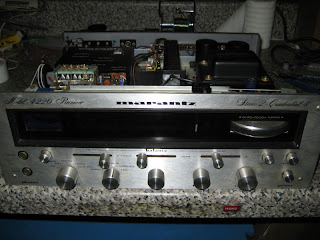

Lil' Mar is a petite Marantz 4220 quad receiver from the mid '70s. Or, as the faceplate says: 'Stereo 2 - Quadradial 4'! Orion says it was sold from 1974 to 1978 and retail list price was $329. The more authoritative says it debuted in '73 and listed in '74 for $299. It was the smallest and lowest powered Marantz quad receiver. Orion says it packs 15 watts per side (stereo, I assume), but lists it at 2x20 or 4x8. It is not exactly a powerhouse, even by the standards of the mid '70s, but I imagine it would drive a dorm room 2 channel rig quite nicely. As for quad, I hope they chose their speakers carefully.

Lil' Mar is not a standard sized component. It is only 14" wide; the similarly powered stereo 2215 is 17.25" wide. lists it at 16.875" wide, but that has to include a wood case.

My initial listen was not particularly favorable. One channel was down in volume and noisy. At the very least I wanted a stable amp that would play vinyl well, so recapping the phono, regulator, and output sections was mandatory.

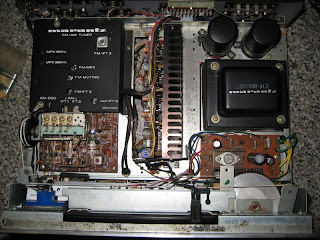

Cramming 4 channel gutti-wuts into such a small space required some engineering trickery. The regulator was relatively easy to access at front right, but the amplifier was going to be a bit complicated. The heat sink occupies the center of the unit with the board on its left. This is not a pop-out like the wonderful Marantz 2275. It's more of an unscrew/tug/unscrew sort of effort so I decide to procrastinate a bit and save it for next time. In the photo below the tuners are at the left, nicely shielded as Marantz is wont to do.

Underneath you can see the preamp/tone control circuitry at the right, behind the faceplate. It's a bit daunting. The board just above the heatsink is the SQ quad circuit board. All the way at the top you can just make out the phono board, facing down.

I removed the two screws on the regulator and recapped it with Panasonic FCs and FMs while it was still tethered to the wires connecting it to the rest of the amp. They were a bit short, so it was a bit awkward soldering. If that engineer had specified just another half inch of wire I would have complimented his foresight at this time. But, no.

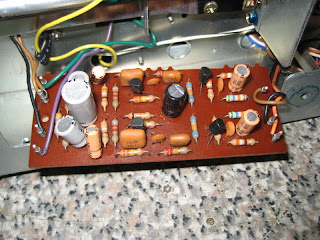

The phono section was much of the same: two screws and some tugging. It is mounted to the side of the chassis, under and to the left of the tuners. Marantz phono sections tend to have a significant number of film caps, but not this one. It has 8 electrolytics, 4 films and 4 ceramics. If I recall correctly, the 2275 has a single electrolytic cap in the phono section. So I could feel good about myself I replaced the two output coupling caps at the far right with Elna Silmics at 22 mfds instead of 10. The rest were replaced with Panasonic FCs. Here is the phono board 'before'.

All in all, I replaced 12 caps, fired it up and the amp was stable. So step #1 is complete and the next trip to the bench will deal with the amp itself.

Sunday, July 12, 2009

Cleaning Up the Archives: The Sony ST 4950 Tuner

I checked out this acquisition a few weeks ago and have been in a lazy funk due to the systemic shock of 8 to 5 employment. And you know what they say about procrastination... Anyway, the archives have now been diminished by one.

The ST-4950 is a handsome tuner, and is really a surprising cosmetic given the vintage. According to the wonderful it was sold in 1977 for $350, but the matching TAN-8550 power amp (coming soon!) service manual in my possession is dated 1974. I think this cosmetic is a forerunner of the early '80s look, although better executed than those that followed.

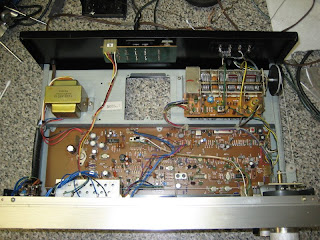

After a scrubbing the garage grime off the exterior, I popped the top prior to plugging it in. A visual inspection can save some heartache and it might have in this instance. The cap at the far left was visibly leaking so it was replaced. I squirted a few switches and the tuning capacitor with Deoxit and fired up the unit.

It worked great. This day on the bench was a short one, so just the single cap was replaced. However, I am going to have to have a Sony re-cap orgy in the near future and get the amp and tuner going with fresh parts. They deserve a very critical listening. Their build quality is very, very good and the amp is an especially desirable unit. Stereo Club member Paul, supplier of the amp service manual, is a very big fan of the Sony V-FET gear and has strongly recommended their addition to the Permanent Collection.

Oh yeah, what about that honking big hole in the chassis? I should point out that most of this line of tuners featured the now obsolete Dolby FM. This particular model did not, but I presume it shared a chassis with either the 3950SD or the big dog 5950SD that did. In this case less is more and the lack of Dolby is a good thing.

For you fans of classic hifi porn, here is the Sony ST-5950 as presented by the Vintage Knob.

Saturday, July 11, 2009

The Alamo Jet Guitar Amp

Time for something completely different, music creation instead of a music reproduction! Tube instead of solid state (mostly)! Here, in Fenderish garb is the 4 tube, single ended 6V6, Alamo Jet from around '65 to '67:

Alamo Electronics was based in San Antonio (natcherly) and had an interesting history from '46 through about '82. As far as I can tell Alamo was never a premium manufacturer, but their amps have acquired a following, especially here in the Lone Star state. The Jet seems to fit nicely as a harp/practice/small venue blues amp.

This amp was in very respectable and original shape, but the last time it was used by one of the boys it was a bit noisy. That was quite a while ago, and I was nervous about firing it up without at least a basic refurb. So it was time to hit the bench.

This is a very basic point to point amp with a minimum number of caps. The 3 section main filter can was a 20@450v/20@450v/20@25v that was in marginal shape. The high voltage sections were hanging in there but the 25v section read high on the ESR meter. Forty year old electrolytics make me nervous so the can had to go. I resolved to just bypass it with caps under the hood and made the mistake of asking Mike how he would approach it. Mike whipped out the big clippers and popped the 3 tabs under the hood free. I really have to quit asking questions with obvious answers.

We resolved to up the values to 47@450v/33@450v/47@63v with Panasonics EE series caps for the high voltage caps and an FC for the other. I replaced the two 10mfd@25v caps with films @100v. Three orange drops and a Panasonic FC 47@63 brought the cap count to a very modest 9. I left the bevy of ceramic caps for another day.

The amp powered up nicely on Mike's Sencore Powerite and was stable, so tomorrow we will see how it sounds.

One note: the several solder points to the chassis were extremely tough to melt. It takes a hot gun to make headway on this amp, I guess the chassis functions as a very big heat sink.

Interestingly, I could not find a Wikipedia entry on Alamo. C'mon guys. But I did find several very useful links. Here is a part 1 of a very good history of Alamo Electronics in Vintage Guitar. And here is part 2. This article indicates '65 marked the transition to the black tolex, so the would be the earliest date of origin for my amp. The part 2 model summation seems to describe my amp cosmetically as in the '65-'66 range but it definitely has two small transistors in the tone control circuit. And it is missing from '65 line up, but I would think that is an omission. Maybe. The early '70s seems to be the transitional period for solid state, so it beats me as to the vintage of my Jet.

And here is a much more thorough restoration/augmentation of what appears to be a bit later version of the Jet, model 2564. My Jet was missing the sticker on the inside so I am not sure of my model number. Evidently Alamo was a bit cavalier with their names and model numbers.

And here are some good pictures of what I also assume is a later Jet, and please scroll to the bottom to view the reverb. Funny. I assume this is an original and not a replacement.

One last digression. In about 1982 Alamo Electronics merged with Southwest Technical Products of San Antonio. In that year I did a pilot software project on a SWTP Uniflex 6809 mini/micro for the state of Texas and demo'ed it for the Governor's office. Ahh, memories. Anyway, SWTP was also a hifi manufacturer of note and deserves some attention from the Stereo Club at some point in the future.
